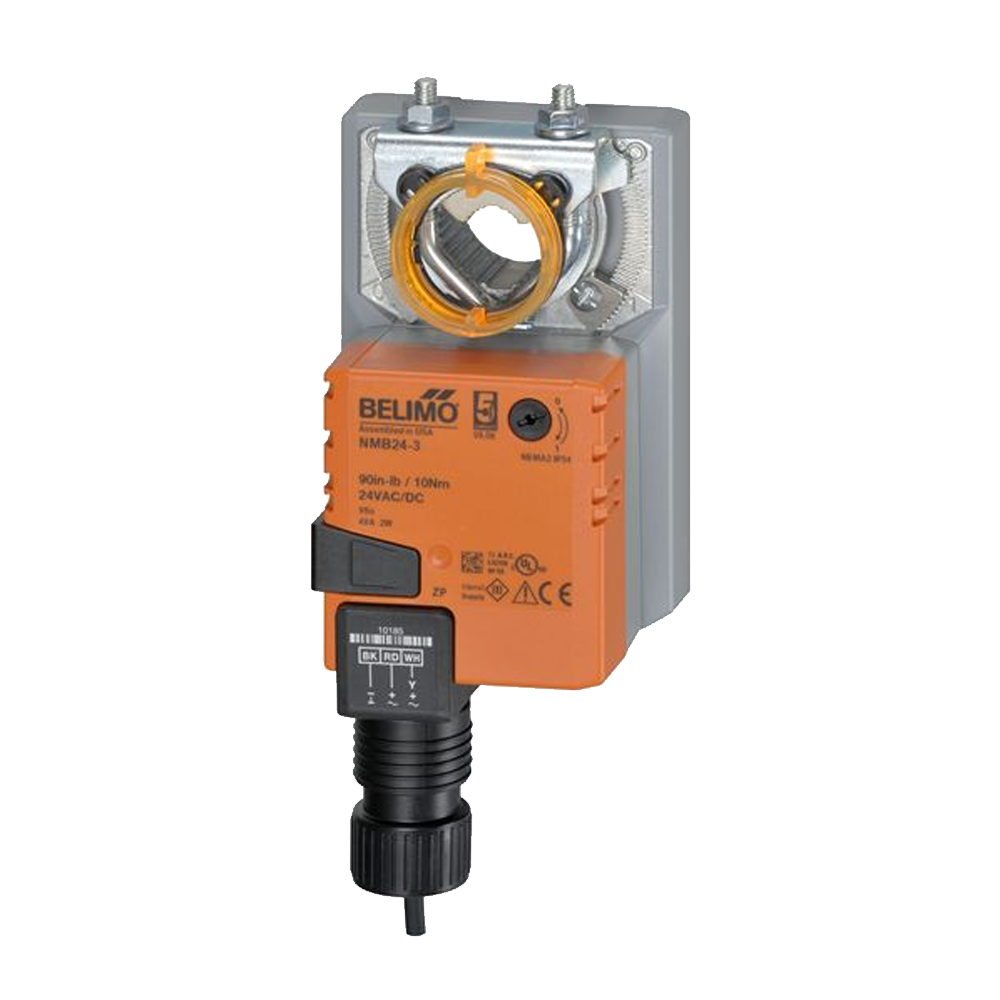

NMB24-SR | Belimo | Damper Actuator
- SKU: NMB24-SR
NMB24-SR Damper Actuator, porportional, 24V non-spring return
For proportional modulation of dampers in HVAC systems. Actuator sizing should be done in accordance with the damper manufacturer’s specifications.
The actuator is mounted directly to a damper shaft up to 1.05” in diameter by means of its universal clamp, 1/2” self centered default. A crank arm and several mounting brackets are available for applications where the actuator cannot be direct coupled to the damper shaft.
The actuator operates in response to a 2 to 10 VDC, or with the addition of a 500 Ω resistor, a 4 to 20 mA control input from an electronic controller or positioner. A 2 to 10 VDC feedback signal is provided for position indication or master-slave applications.
Download the Data Sheet
Download the Installation Guide
