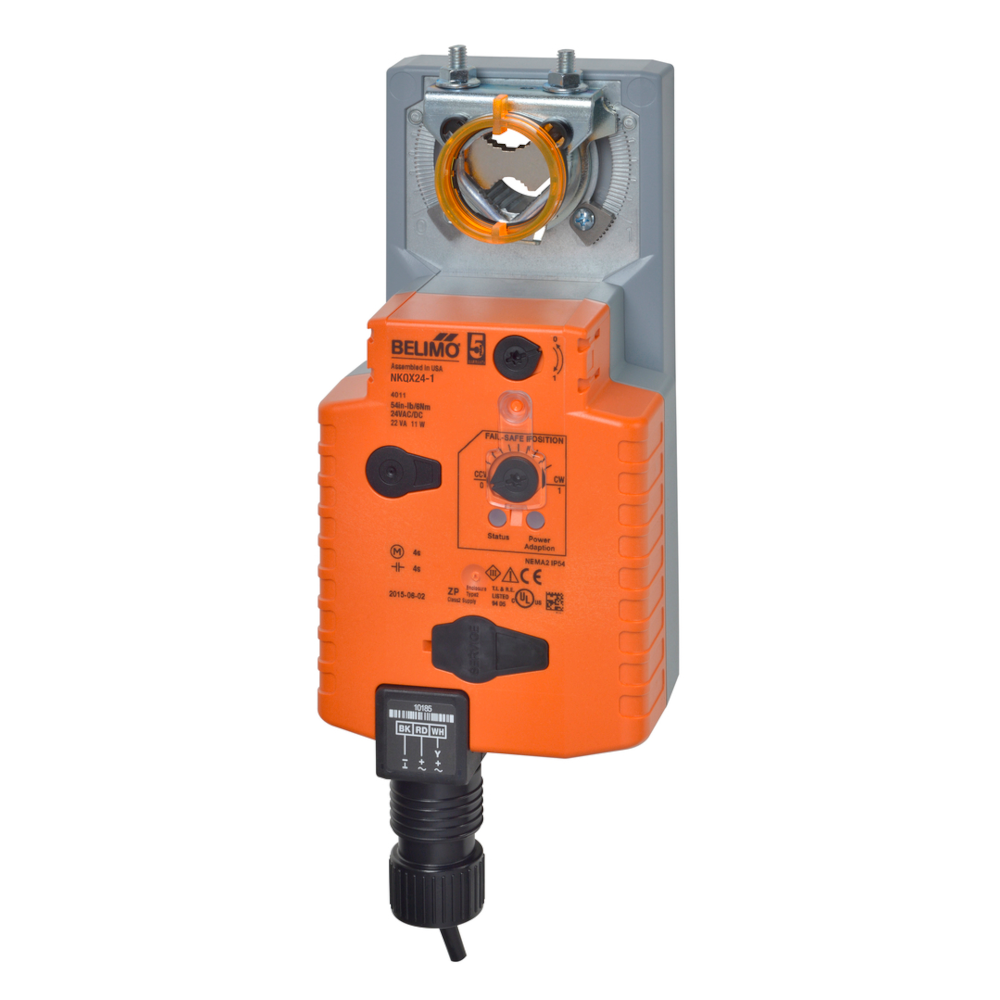

Configurable, Damper Actuator, 54 in-lbs [6 Nm], Electronic fail-safe, AC/DC 24 V, On/Off

For On/Off, fail-safe control of dampers in HVAC systems. Actuator sizing should be done in accordance with the damper manufacturer’s specifications. Control is On/Off from an auxiliary contact or a manual switch. The actuator is mounted directly to a damper shaft up to 1.05” in diameter by means of its universal clamp. A crank arm and several mounting brackets are available for applications where the actuator cannot be direct coupled to the damper shaft.

Download the Data Sheet

Download the Installation Guide
