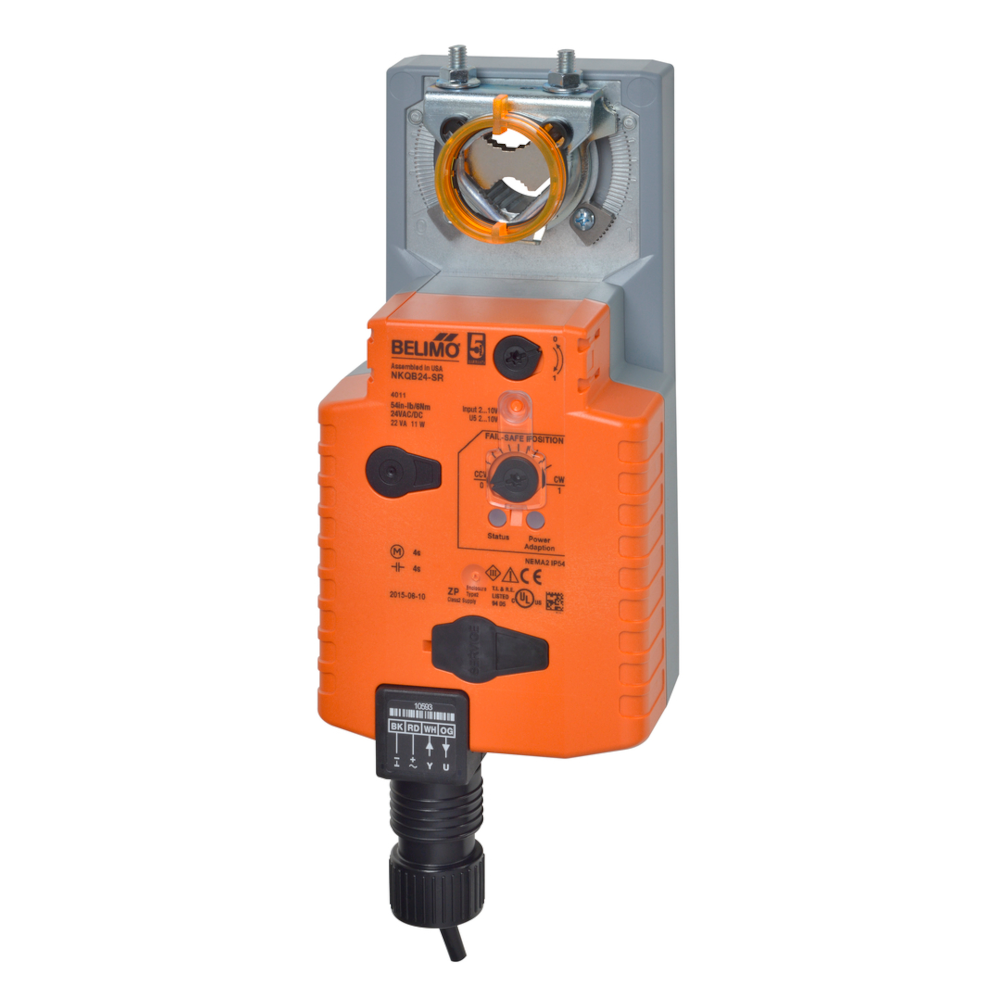

NKQB24-SR | Belimo | Damper Actuator

  • SKU: NKQB24-SR

Regular price
$1,257.00
Sale price
$691.35
Unit price
per

Availability:

Estimated delivery in 4-7 business days


Damper Actuator, 54 in-lb [6 Nm], Electronic fail-safe, AC/DC 24 V, 2...10 V



For fail-safe, modulating control of dampers in HVAC systems. Actuator sizing should be done in accordance with the damper manufacturer’s specifications. The actuator is mounted directly to a damper shaft up to 1.05” in diameter by means of its universal clamp. A crank arm and several mounting brackets are available for applications where the actuator cannot be direct coupled to the damper shaft. The actuator operates in response to a 2 to 10 VDC or, with the addition of a 500? resistor, a 4 to 20 mA control input from an electronic controller or positioner. A 2 to 10 VDC feedback signal is provided for position indication. Not to be used for a master-slave application.



Download the Data Sheet

Download the Installation Guide




Request a Quote
