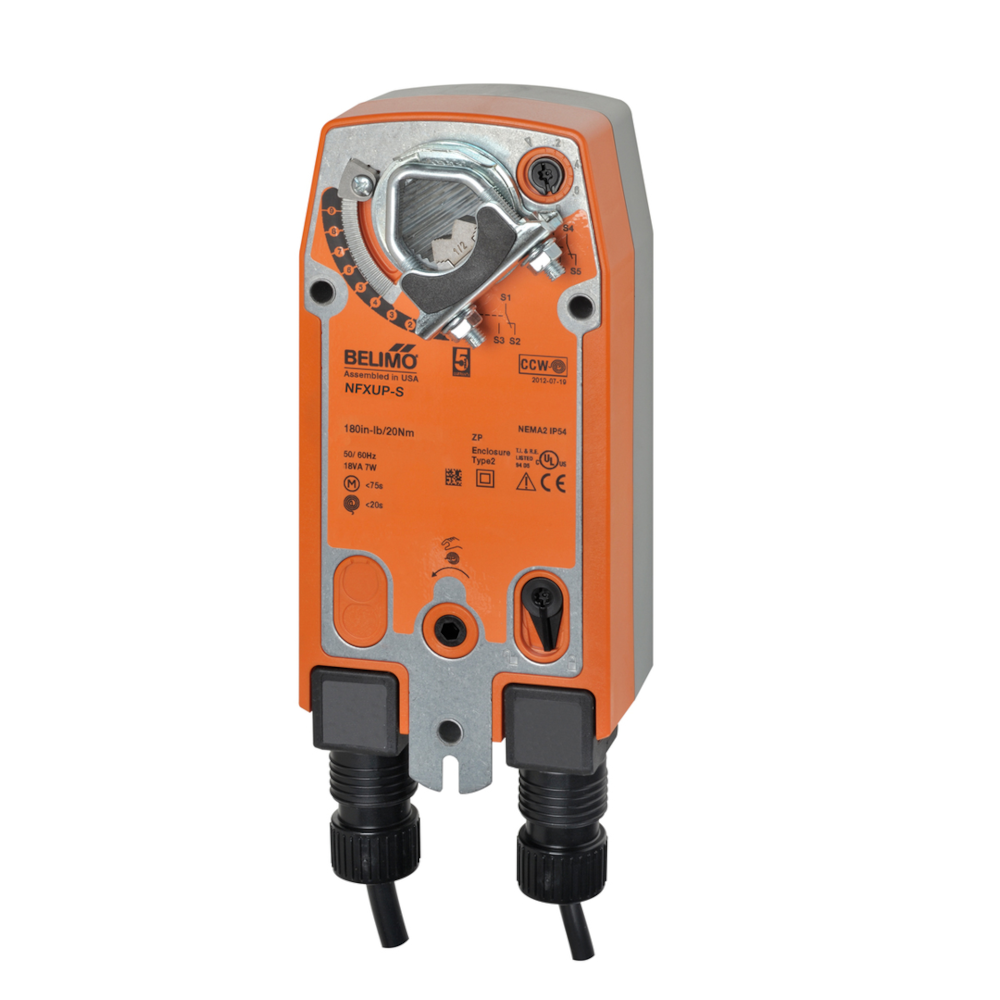

NFXUP-S | Belimo | Damper Actuator
- SKU: NFXUP-S
Estimated delivery in 4-7 business days
Configurable, Damper Actuator, 90 in-lbs [10 Nm], Spring return, AC 24...240 V/DC 24...125 V, On/Off, 2 x SPDT
For On/Off, fail-safe control of dampers in HVAC systems. Actuator sizing should be done in accordance with the damper manufacturer’s specifications. Control is On/Off from an auxiliary contact or a manual switch. The actuator is mounted directly to a damper shaft up to 1.05” in diameter by means of its universal clamp. A crank arm and several mounting brackets are available for applications where the actuator cannot be direct coupled to the damper shaft.
Download the Data Sheet
Download the Installation Guide
