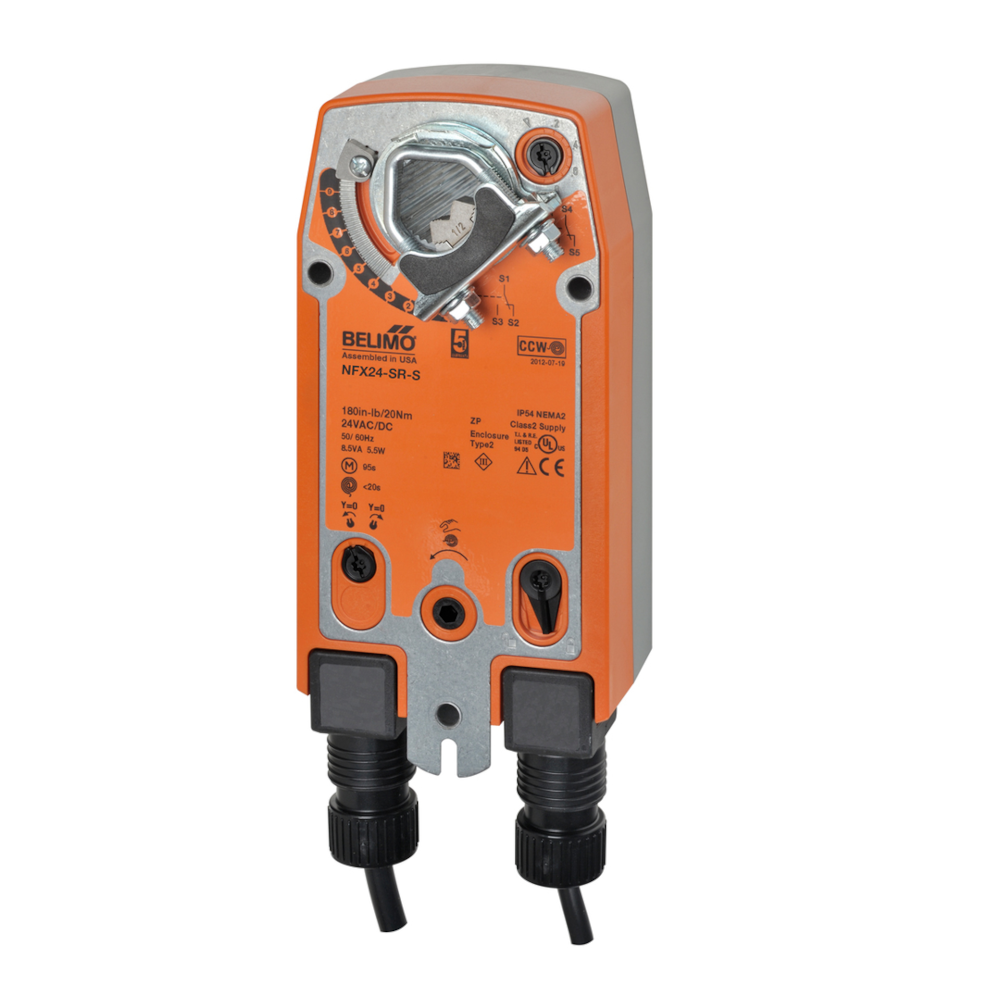

NFX24-SR-S | Belimo | Damper Actuator

  • SKU: NFX24-SR-S

Regular price
$871.00
Sale price
$365.82
Unit price
per

Availability:

Estimated delivery in 4-7 business days


Configurable, Damper Actuator, 90 in-lbs [10 Nm], Spring return, AC/DC 24 V, DC 2...10 V, 2 x SPDT



For fail-safe, modulating control of dampers in HVAC systems. Actuator sizing should be done in accordance with the damper manufacturer’s specifications. The actuator is mounted directly to a damper shaft up to 1.05” in diameter by means of its universal clamp. A crank arm and several mounting brackets are available for applications where the actuator cannot be direct coupled to the damper shaft. The actuator operates in response to a 2 to 10 VDC or, with the addition of a 500Ω resistor, a 4 to 20 mA control input from an electronic controller or positioner. A 2 to 10 VDC feedback signal is provided for position indication. Not to be used for a master-slave application.
