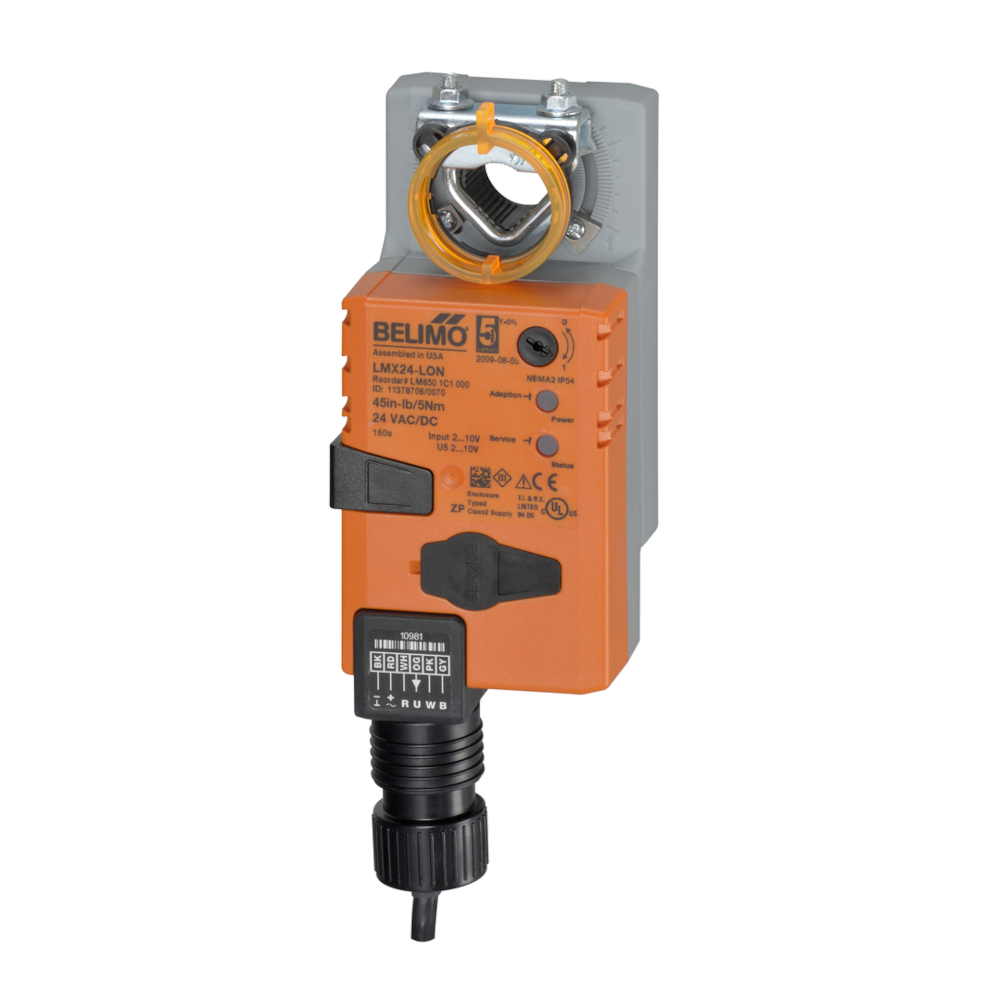

LMX24-LON | Belimo | Damper Actuator

  • SKU: LMX24-LON

Regular price
Sale price
Unit price


Estimated delivery in 4-7 business days

Configurable, Damper Actuator, 45 in-lbs [5 Nm], Non fail-safe, AC/DC 24 V, Modulating, communicative, hybrid, LON (FTT-10A)


Direct coupled actuators for direct link to LonWorks network. Actuators are easily installed by direct shaft mounting on air dampers in ventilation and air conditioning systems. Actuator can be controlled by any compatible LON controller or automation system. For proportional modulation of dampers in HVAC systems. Actuator sizing should be done in accordance with the damper manufacturer’s specifications. The actuator is mounted directly to a damper shaft from 1/4” up to 5/8” in diameter by means of its universal clamp. Shafts up to 3/4” diameter can be accommodated by an accessory clamp.
