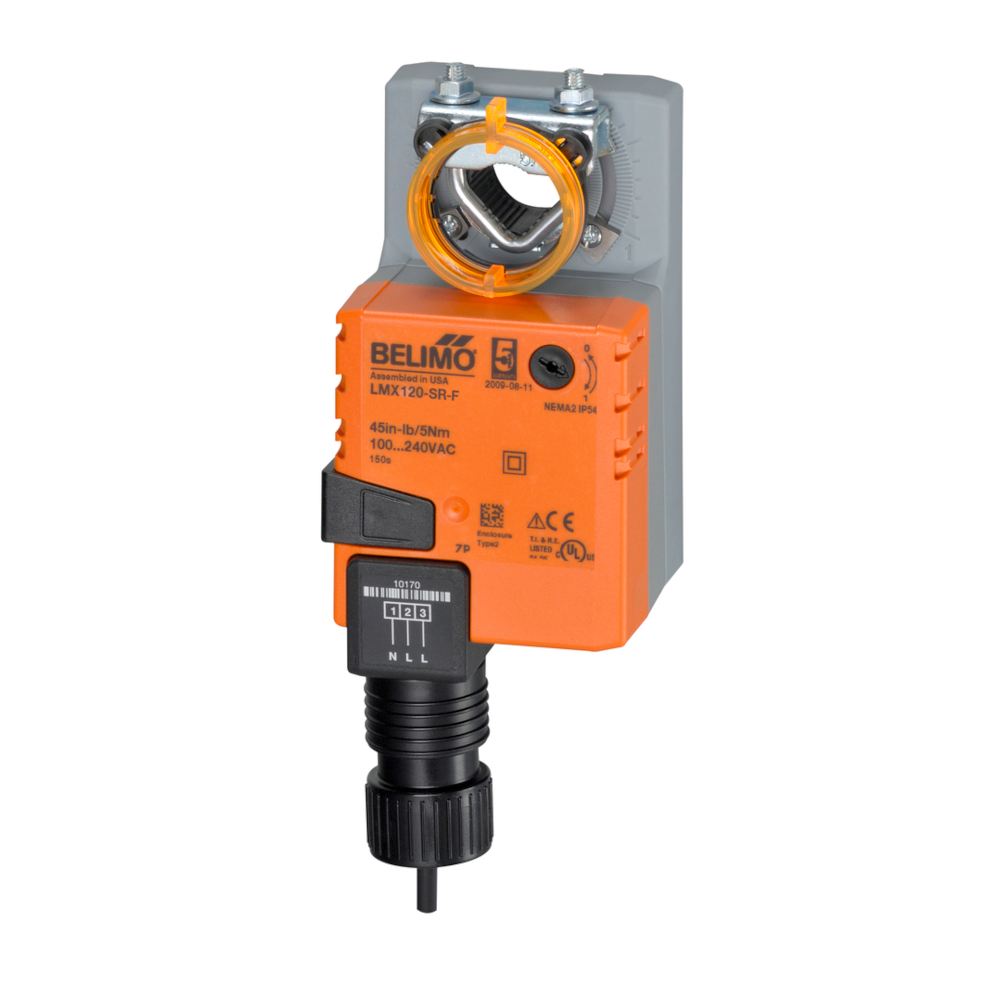

LMX120-SR-F | Belimo | Damper Actuator

  • SKU: LMX120-SR-F

Regular price
$381.00
Sale price
$160.02
Unit price
per

Availability:

Estimated delivery in 4-7 business days


Configurable, Damper Actuator, 45 in-lbs [5 Nm], Non fail-safe, AC 100...240 V, DC 2...10 V



For proportional modulation of dampers in HVAC systems. Actuator sizing should be done in accordance with the damper manufacturer’s specifications. The actuator is mounted directly to a damper shaft from 1/4” up to 5/8” in diameter by means of its universal clamp. Shafts up to 3/4” diameter can be accommodated by an accessory clamp. The actuator operates in response to a 2 to 10 VDC, or with the addition of a 500 Ω resistor, a 4 to 20 mA control input from an electronic controller or positioner. A 2 to 10 VDC feedback signal is provided for position indication or master-slave applications.



Download the Data Sheet

Download the Installation Guide




Request a Quote
