LHX24-SR-100 | Belimo | Damper Actuator

  • SKU: LHX24-SR-100

Regular price
$432.00
Sale price
$181.44
Unit price
per

Availability:

Estimated delivery in 4-7 business days

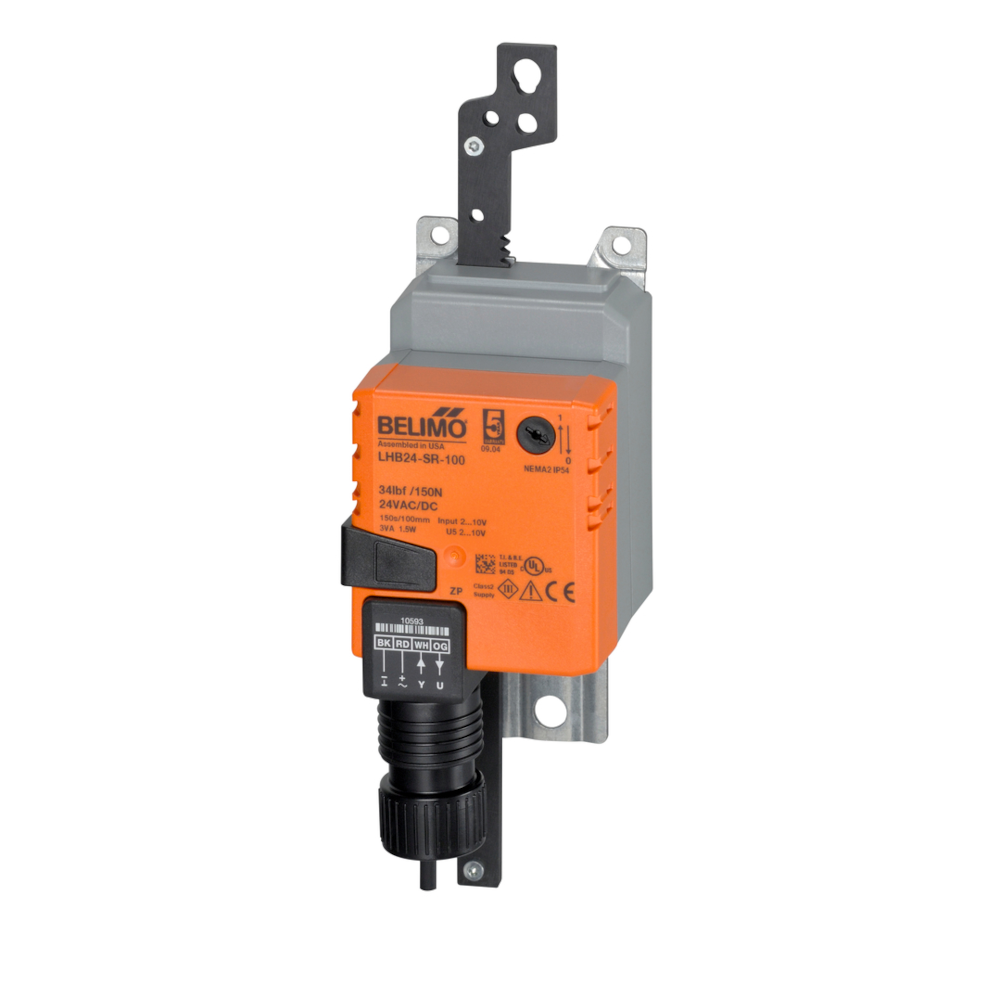

Configurable, Damper Actuator, 34 lbf [150 N], Non fail-safe, AC/DC 24 V, DC 2...10 V, cable



For proportional modulation of dampers in HVAC systems. Actuator sizing should be done in accordance with the damper manufacturer’s specifications. The actuator operates in response to a 2 to 10 VDC, or with the addition of a 500 Ω resistor, a 4 to 20 mA control input from an electronic controller or positioner.

A 2 to 10 VDC feedback signal is provided for position indication or master-slave applications.



Download the Data Sheet

Download the Installation Guide




Request a Quote
