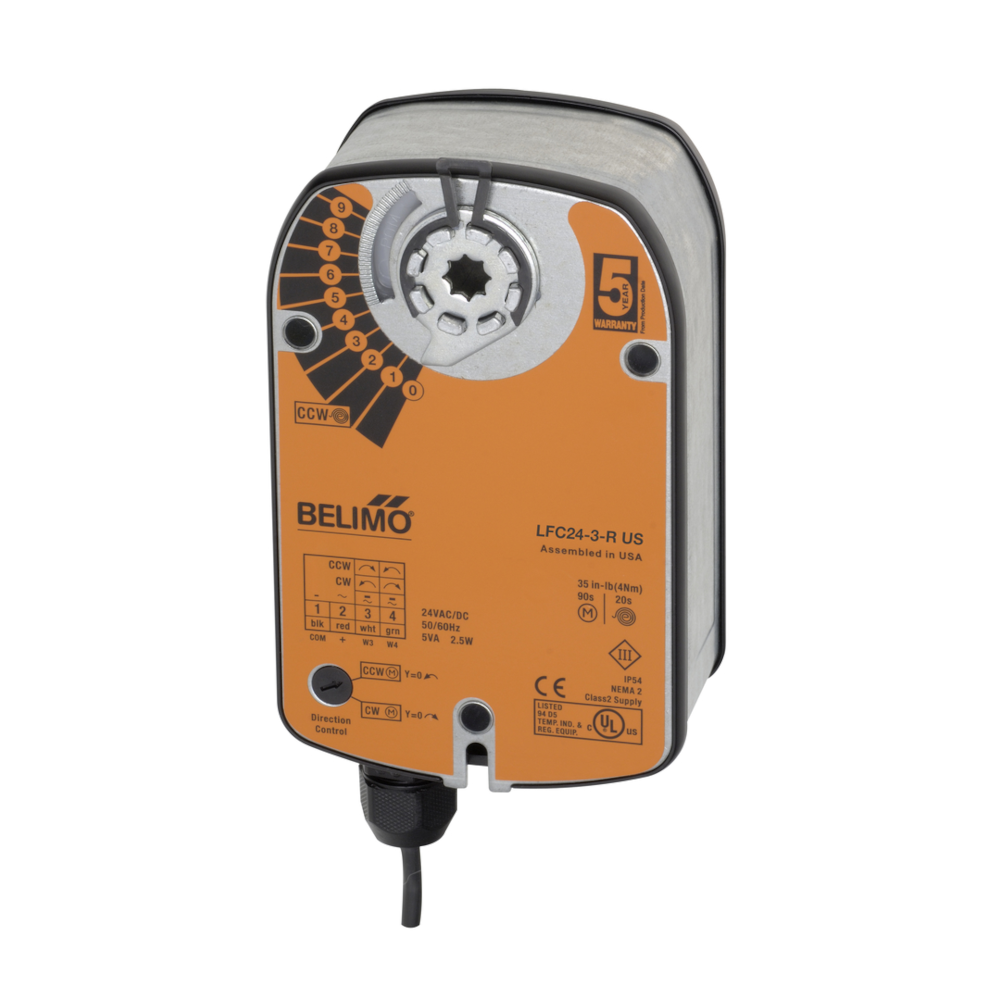

LFC24-3-R US | Belimo | Damper Actuator
- SKU: LFC24-3-R US
Estimated delivery in 4-7 business days
Damper Actuator, 35 in-lbs [4 Nm], Spring return, AC/DC 24 V, On/Off, Floating point
For modulation or On/Off, fail-safe control of dampers in HVAC systems. Actuator sizing should be done in accordance with the damper manufacturer’s specifications. The actuator is mounted directly to a damper shaft with its 8x8 mm form fit ZG-LFC114 universal mounting kit for retrofit of the economizer section of the Trane Voyager unit. Control is floating point from a triac or relay, or On/Off from an auxiliary contact from a fan motor contactor, controller or manual switch.
Download the Data Sheet
Download the Installation Guide
