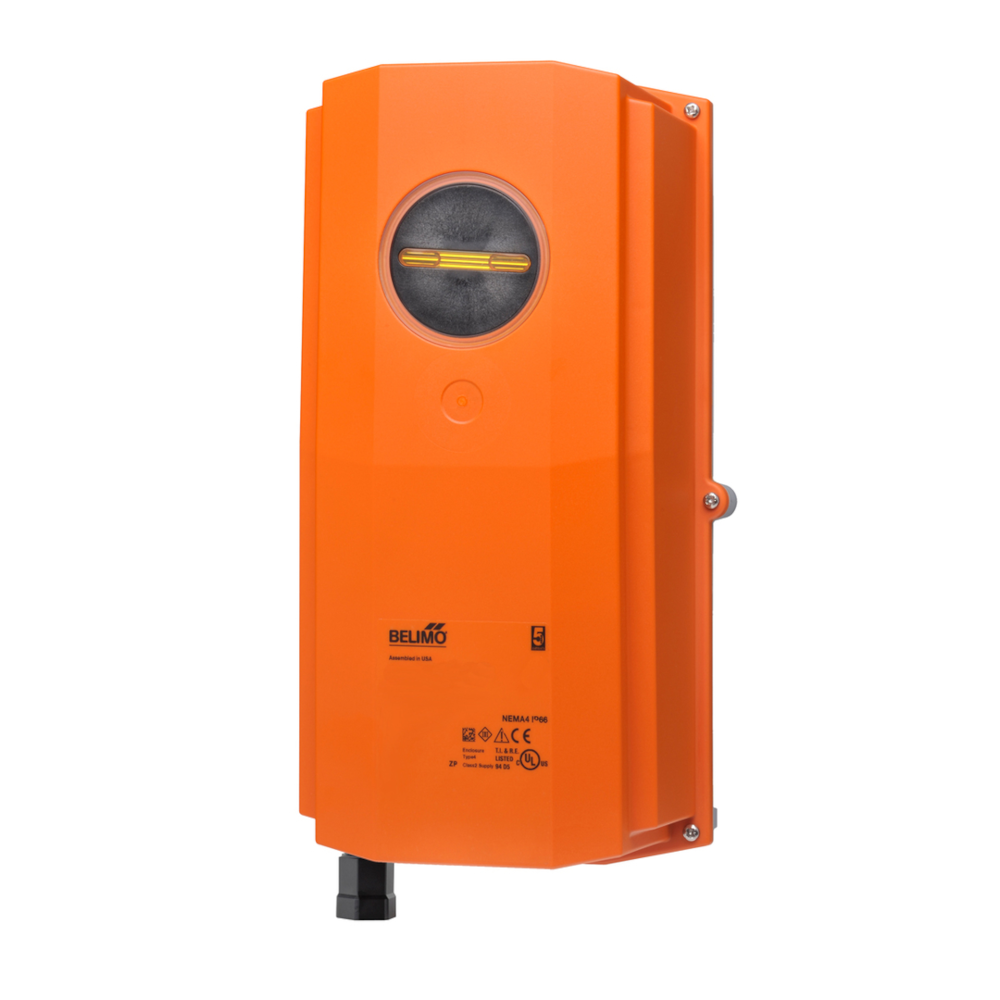

Configurable, Damper Actuator, 360 in-lbs [40 Nm], Non fail-safe, AC/DC 24 V, DC 2...10 V, NEMA 4X

For modulation of dampers in HVAC systems. Actuator sizing should be done in accordance with the damper manufacturer’s specifications. The actuator is mounted directly to a damper shaft up to 1.05” in diameter by means of its universal clamp. The default parameters for 2 to 10 VDC applications of the …MFT actuator are assigned during manufacturing. If necessary, custom versions of the actuators can be ordered. The parameters can be changed by two means: pre-set and custom configurations from Belimo or on-site configurations using the Belimo PC-Tool software.

Download the Data Sheet

Download the Installation Guide
