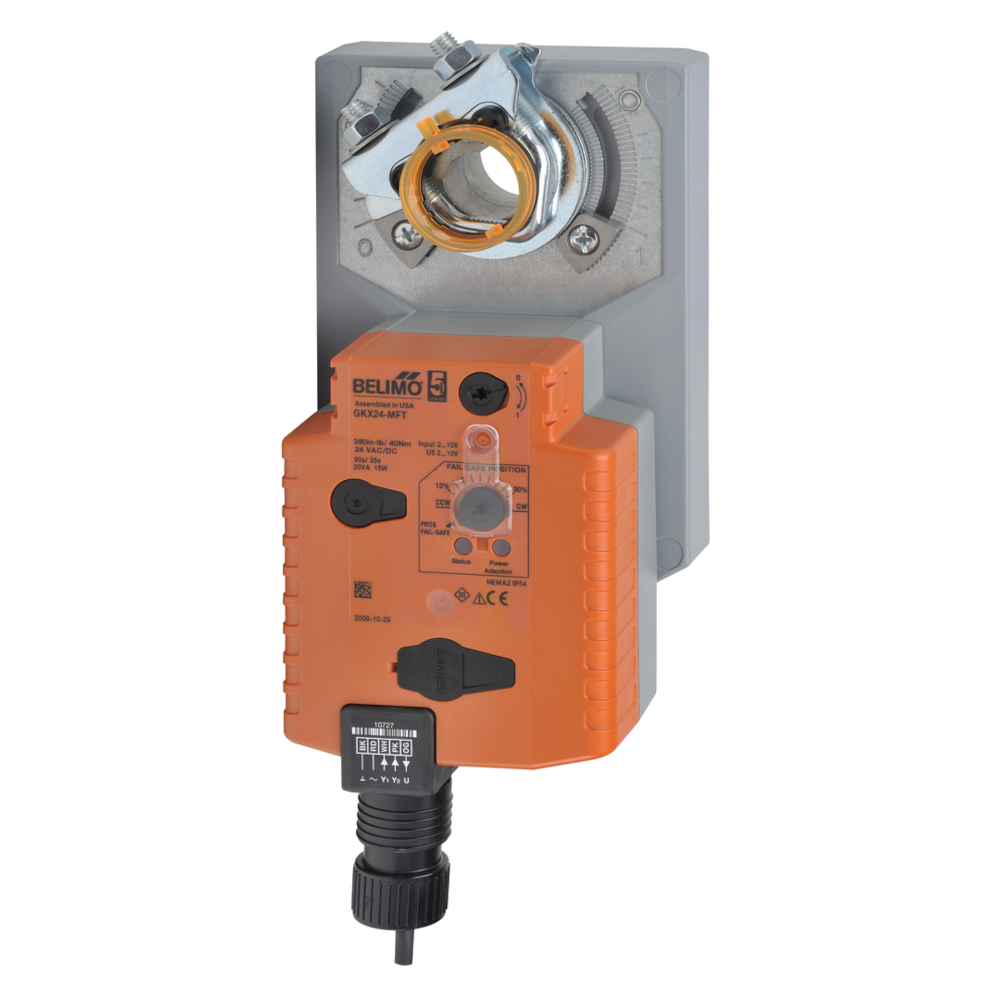

Configurable, Damper Actuator, 360 in-lbs [40 Nm], Electronic fail-safe, AC/DC 24 V, DC 2...10 V
For fail-safe, modulating control of dampers in HVAC systems. Actuator sizing should be done in accordance with the damper manufacturer’s specifications. A feedback signal is provided for position indication or master-slave applications. Maximum of two GK’s can be piggybacked for torque loads of up to 720 in-lbs. Minimum 1” diameter shaft and Master-Slave wiring.
Download the Data Sheet
Download the Installation Guide
