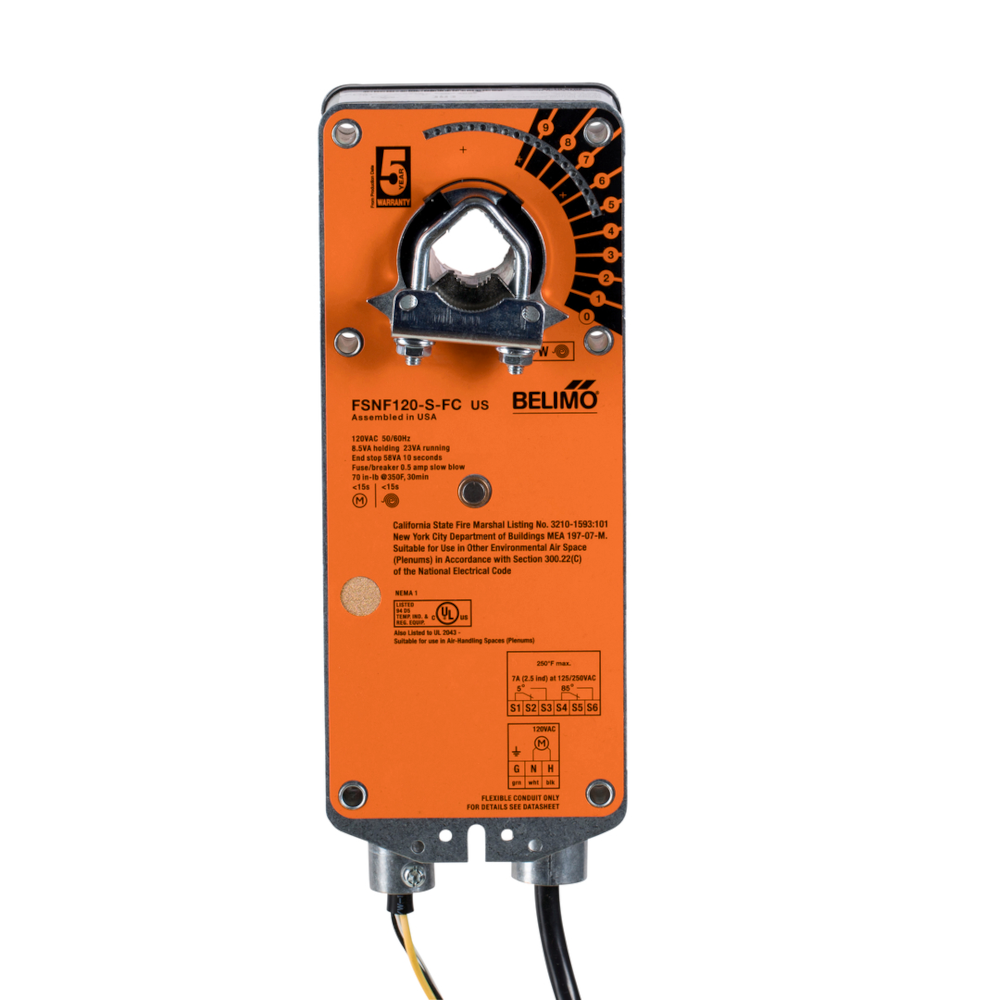

FSNF120-S-FC US | Belimo | Fire&Smoke Damper Actuator
- SKU: FSNF120-S-FC US
-
Regular price
-
$1,395.00
-
Sale price
-
$767.25
-
Unit price
- per
In stock
Fire & Smoke Actuator, 70 in-lbs [8 Nm] from 32°F to 350°F [0°C to 177°C], Spring return, AC 120 V, On/Off, 2 x SPDT
The type FSNF spring-return actuator is intended for the operation of smoke and combination fire and smoke dampers in ventilation and air-conditioning systems. The actuator will meet requirements of UL555 and UL555S when tested as an assembly with the damper and will meet requirements of UBC for 15 second opening and closing at 350°F. Square footage of damper operated will depend on make and model and the temperature required.
IMPORTANT 24VDC NOTE: The FSNF24 & -S models will not operate below 24VDC. A filtered and regulated power supply must be used.
Download the Data Sheet
