EFX24-SR N4 | Belimo | Damper Actuator
- SKU: EFX24-SR N4
Estimated delivery in 4-7 business days

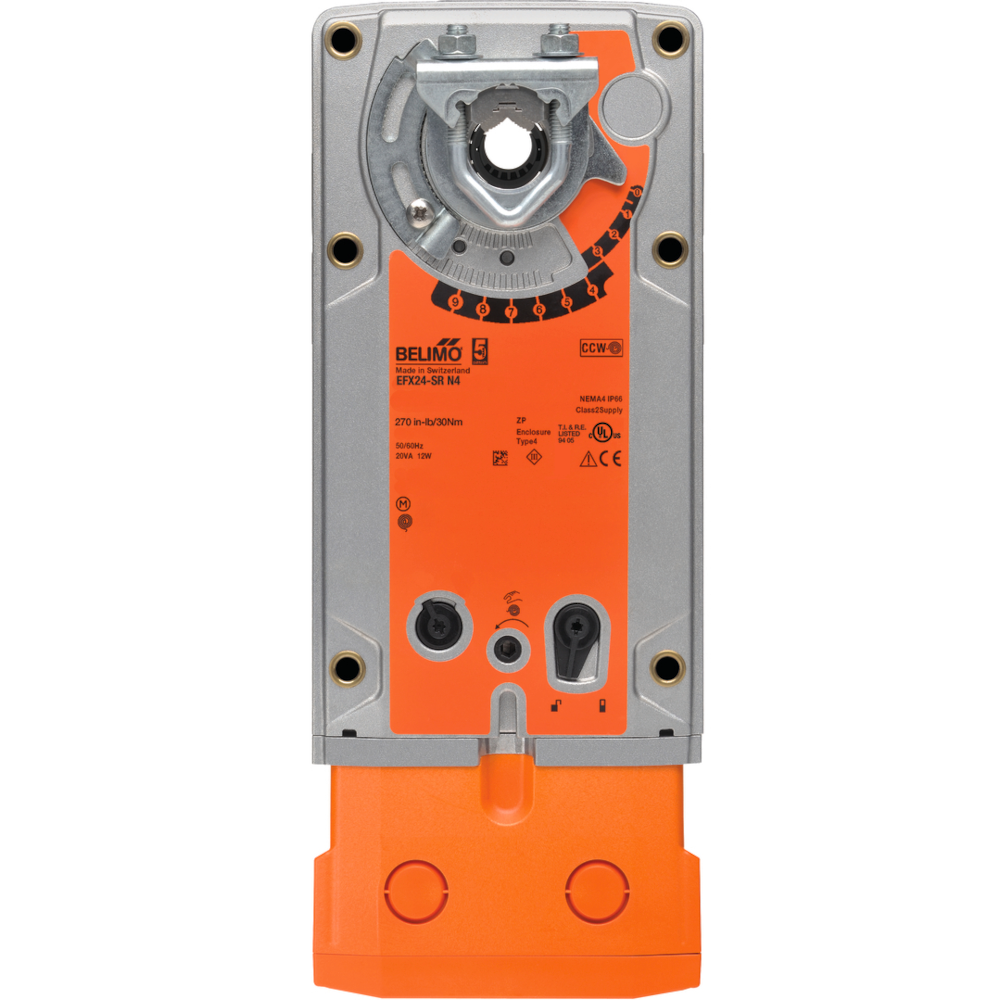

Configurable, Damper Actuator, 270 in-lbs [30 Nm], Spring return, AC/DC 24 V, DC 2...10 V, NEMA 4
For fail-safe, modulating control of dampers in HVAC systems. Actuator sizing should be done in accordance with the damper manufacturer’s specifications. The actuator is mounted directly to a damper shaft up to 1.05” in diameter by means of its universal clamp. A crank arm and several mounting brackets are available for applications where the actuator cannot be direct coupled to the damper shaft. The actuator operates in response to a DC 2...10 Vor, with the addition of a 500Ω resistor, a 4...20 mA control input from an electronic controller or positioner. A DC 2...10 V feedback signal is provided for position indication.
A common installation technique for control of multi-section dampers is to use the U5 position feedback of one actuator (Master) to control multiple actuators (Slaves). Belimo refers to this as Master/Slave control. The only requirement is that the actuators are installed on MECHANICALLY SEPARATE damper shafts.
Download the Data Sheet
Download the Installation Guide
