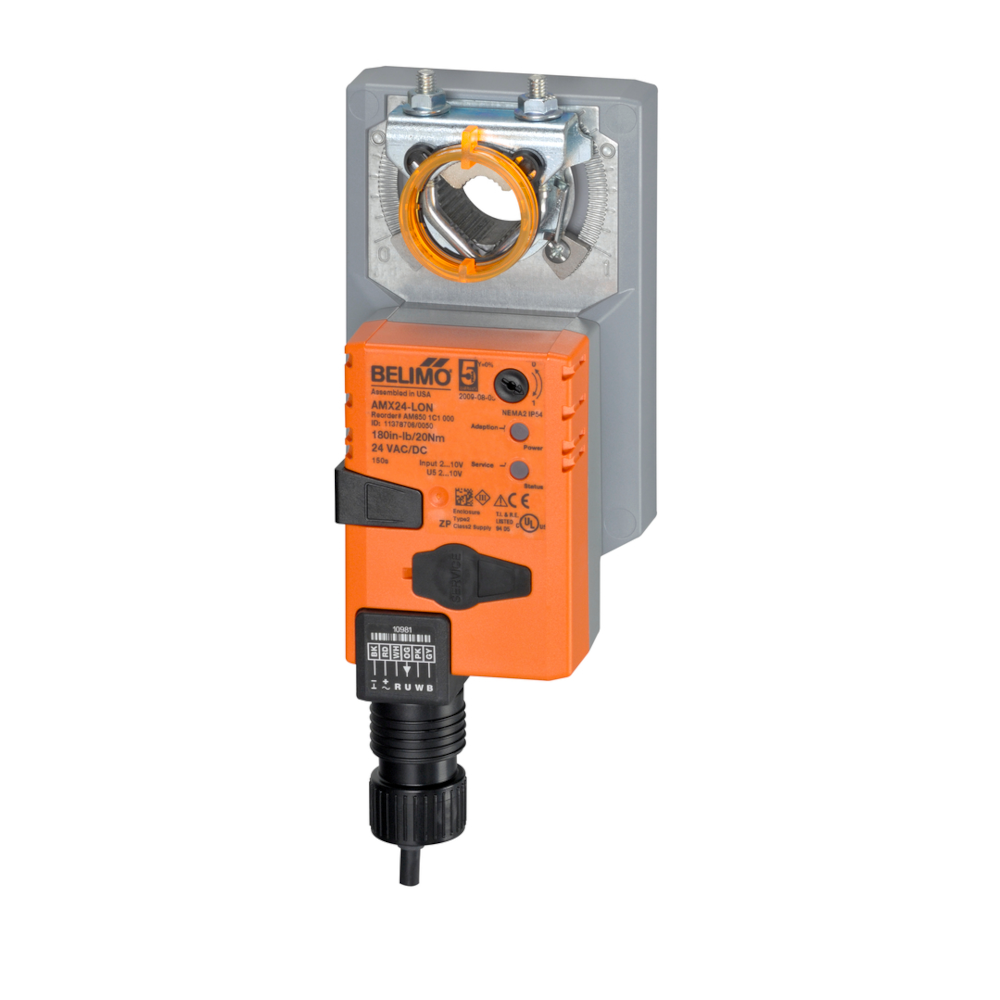

Configurable, Damper Actuator, 180 in-lbs [20 Nm], Non fail-safe, AC/DC 24 V, Modulating, communicative, hybrid, LON (FTT-10A)

Proportional control damper actuators shall be electronic direct-coupled type, which require no crank arm and linkage and be capable of direct mounting to a shaft from 1/4” to 1/2” diameter. Actuators must provide proportional damper control response to a 2 to 10 VDC or, with the addition of a 500? resistor, a 4 to 20 mA control input from an electronic controller or positioner. Actuators shall have brushless DC motor technology and be protected from overload at all angles of rotation. Actuators shall have manual override on the cover. Run time shall be constant and independent of torque. Actuators shall be cULus listed, have a 5-year warranty, and be manufactured under ISO 9001 International Quality Control Standards. Actuators shall be as manufactured by Belimo.
