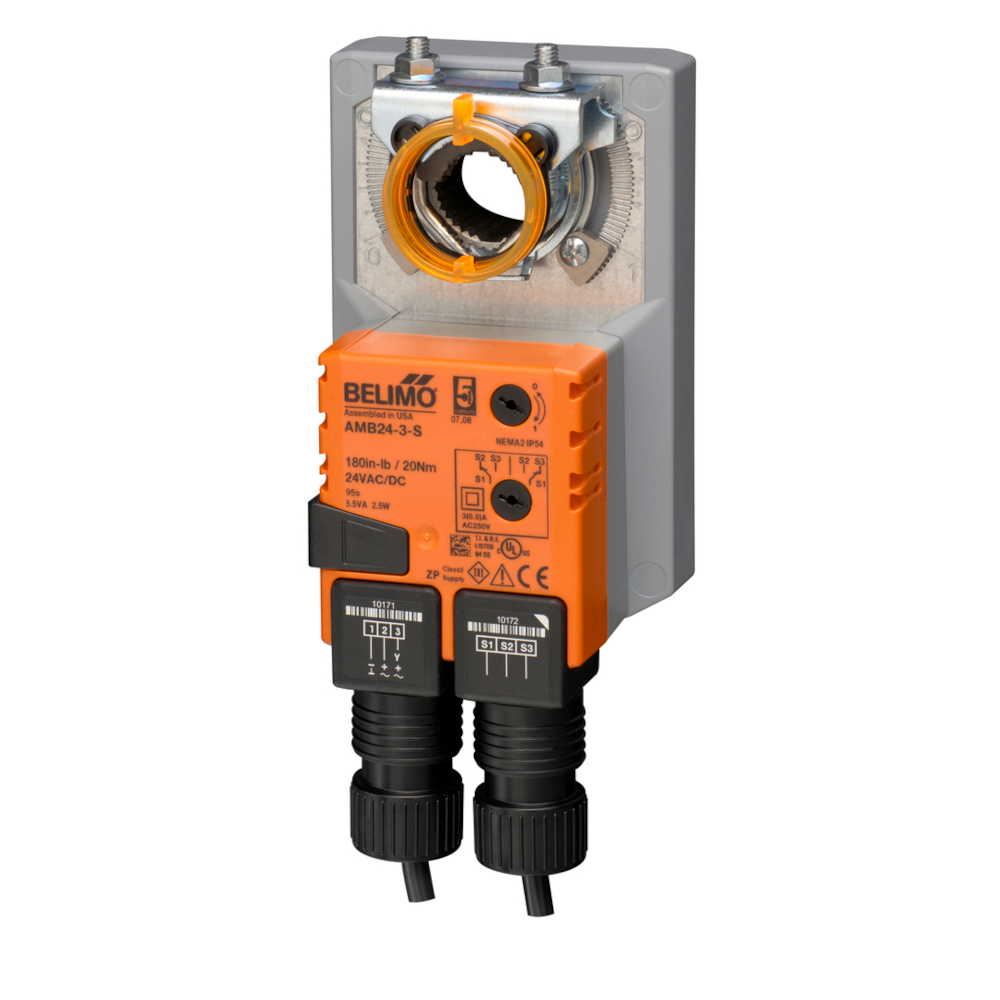

Configurable, Damper Actuator, 180 in-lbs [20 Nm], Non fail-safe, AC/DC 24 V, On/Off, Floating point, 1 x SPDT

For on/off and floating point control of dampers in HVAC systems. Actuator sizing should be done in accordance with the damper manufacturer’s specifications.

The actuator is mounted directly to a damper shaft up to 1.05” in diameter by means of its universal clamp, self-centered default. A crank arm and several mounting brackets are available for applications where the actuator cannot be direct coupled to the damper shaft.

Download the Data Sheet

Download the Installation Guide
