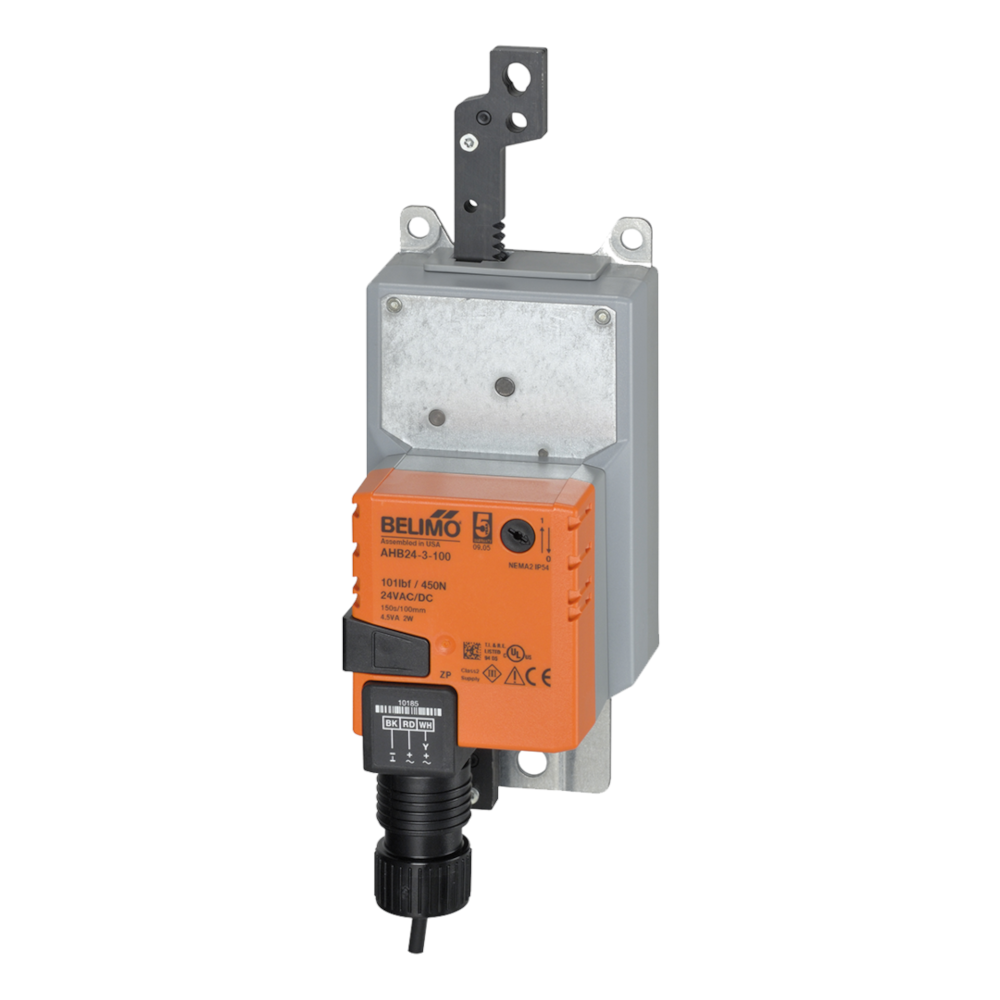

Configurable, Damper Actuator, 101 lbf [450 N], Non fail-safe, AC 100...240 V, DC 2...10 V, cable

For proportional modulation of dampers in HVAC systems. Actuator sizing should be done in accordance with the damper manufacturer’s specifications.

The actuator operates in response to a 2 to 10 VDC, or with the addition of a 500 ? resistor, a 4 to 20 mA control input from an electronic controller or positioner.

A 2 to 10 VDC feedback signal is provided for position indication or master-slave applications.
