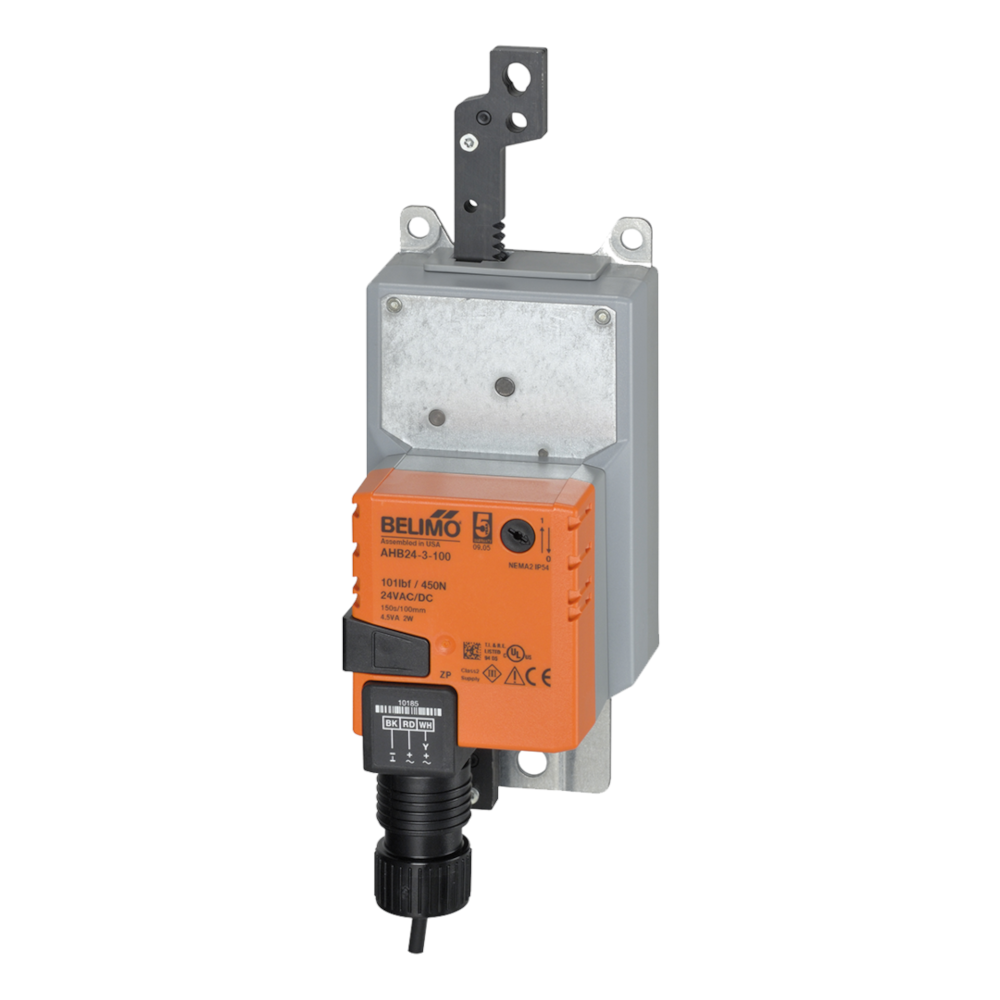

Damper Actuator, 101 lbf [450 N], Non fail-safe, AC/DC 24 V, DC 2...10 V, cable

For proportional modulation of dampers in HVAC systems. Actuator sizing should be done in accordance with the damper manufacturer’s specifications. The actuator operates in response to a 2 to 10 VDC, or with the addition of a 500 ? resistor, a 4 to 20 mA control input from an electronic controller or positioner.

A 2 to 10 VDC feedback signal is provided for position indication or master-slave applications.

Download the Data Sheet
