AFXUP N4 | Belimo | Damper Actuator

  • SKU: AFXUP N4

Regular price
$1,251.00
Sale price
$525.42
Unit price
per

Availability:

Estimated delivery in 4-7 business days

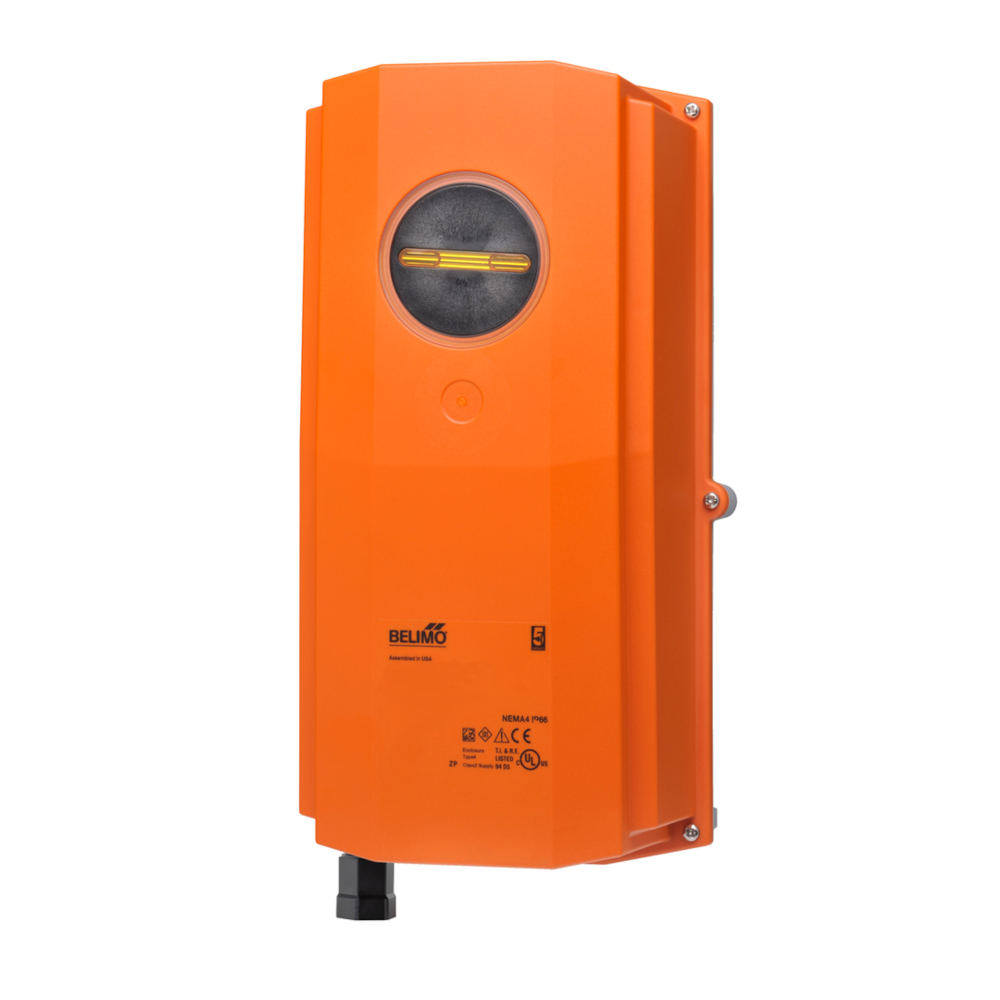

Damper Actuator, Spring Return, 24V, MFT, NEMA 4H



For On/Off, fail-safe control of dampers in HVAC systems. Actuator sizing should be done in accordance with the damper manufacturer’s specifications. Control is On/Off from an auxiliary contact or a manual switch. The actuator is mounted directly to a damper shaft up to 1.05” in diameter by means of its universal clamp. Maximum of two AF’s can be piggybacked for torque loads of up to 266 in-lbs. Minimum 3/4” diameter shaft and parallel wiring.



Download the Data Sheet

Download the Installation Guide




Request a Quote
