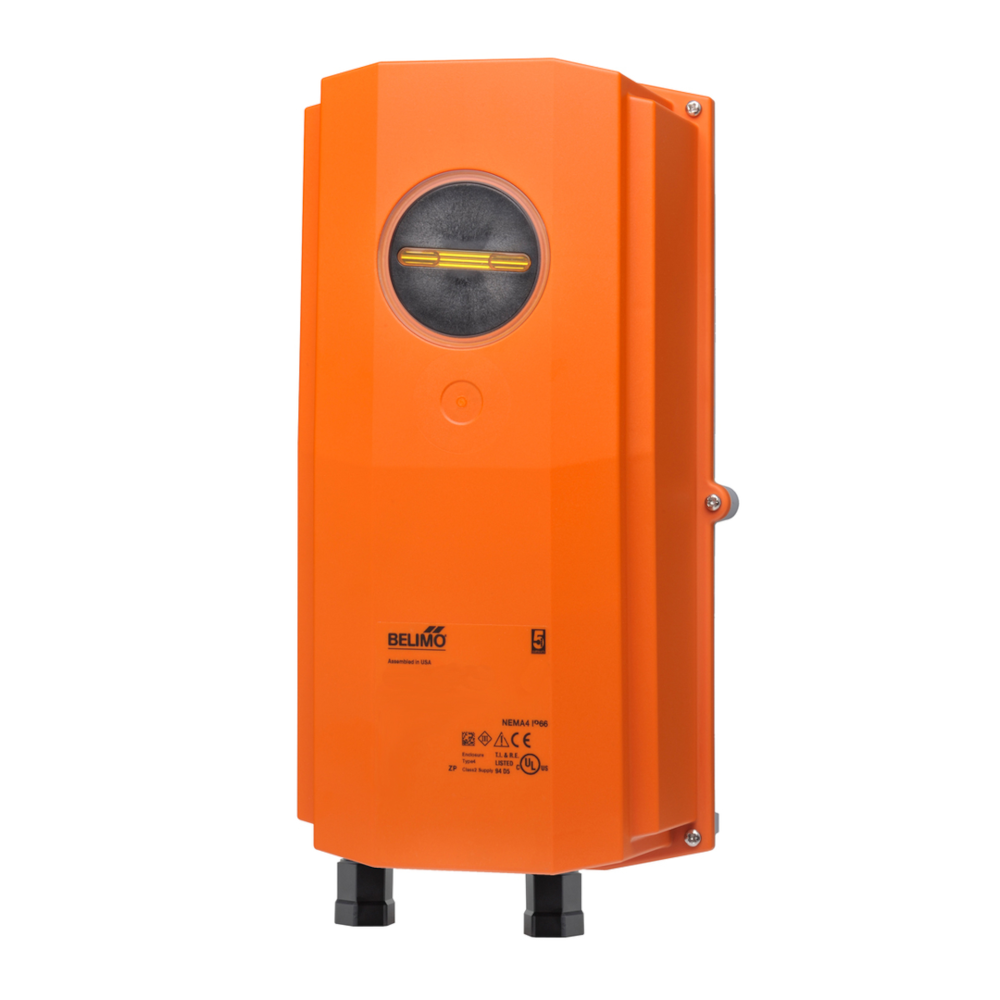

AFX24-MFT-S N4 | Belimo | Damper Actuator
- SKU: AFX24-MFT-S N4
Estimated delivery in 4-7 business days
Configurable, Damper Actuator, 180 in-lbs [20 Nm], Spring return, AC/DC 24 V, DC 2...10 V, 2 x SPDT, NEMA 4X
For fail-safe, modulating control of dampers in HVAC systems. Actuator sizing should be done in accordance with the damper manufacturer’s specifications. A feedback signal is provided for position indication for master-slave applications. Two AF’s can be piggybacked for torque loads to max. 360 in-lb. Minimum 3/4” diameter shaft. OR Maximum of three AF’s can be piggybacked for torque loads to max. 432 in-lb. Minimum 3/4” diameter shaft. Master-Slave wiring for either configuration. Actuators must be mechanically linked.
When not mechanically linked, actuators must be wired in parallel.
